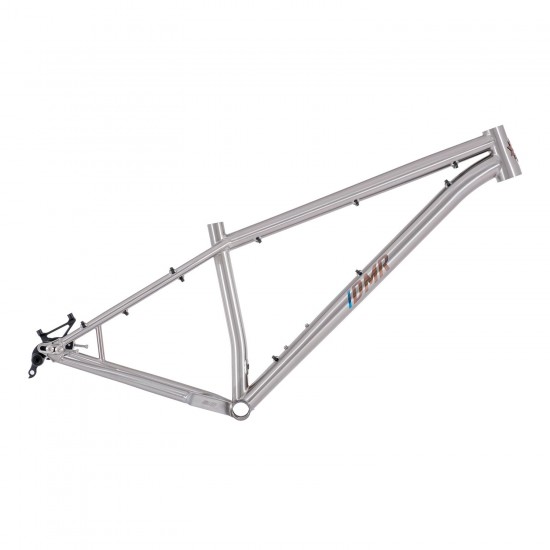

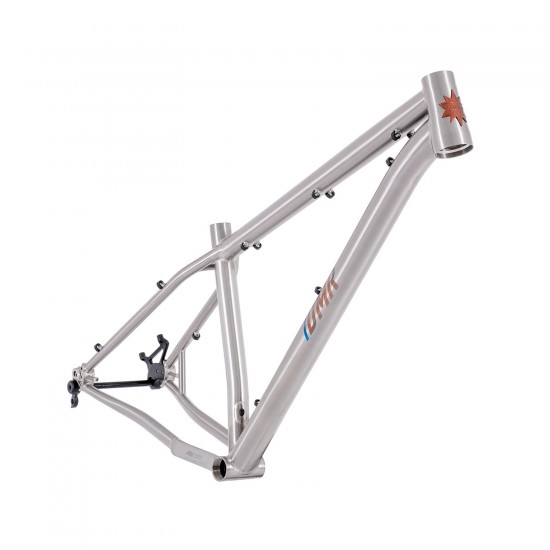

DMR - Frame - Trailstar Ti - L3

FROM THE TRAILS FOR THE TRAILS

The DMR Trailstar frame is now available in a limited-edition titanium version to celebrate the company's upcoming 30-year anniversary the O.G. Trailstar was our first ever mountain bike frame.

The new Trailstar Ti comes with a long, low and stable geometry, featuring a slack headtube, steep seat tube and long reach numbers. The frame is sized by reach and is also designed to be used with a dropper post. For the first time, the Trailstar Ti has been designed to accommodate 29 wheels and optimised for a 140mm fork.

Titanium frame construction means a lighter frame, unbeatable quality and durability, and a unique riding feel that only titanium can give you. Ride a Trailstar Ti hardtail and you wont go back.

The horizontally adjustable dropouts allow you to fine-tune the Trailstar Ti's chainstay length according to your riding style, and it comes with the added benefit of single-speed capability.

When choosing the size of the Trailstar Ti, consider your riding style and fit preferences instead of your height.

Externally routed cables make servicing the bike easy, and it allows the use of a full-length outer cable to ensure that your Trailstar Ti runs smoothly even during the UK winter.

The GW Switch Lever Thru Axles come with a clean and simple design and can be fitted or removed using a 6mm hex key.

Specification

3Al-2.5V titanium tubing
Clearance for 29 x 2.5 tyres
Max chainring size: 32T
148 x 12mm Boost rear axle spacing
Adjustable sliding dropouts
73mm threaded BB shell
31.6mm seat post required.
34.9mm seat clamp required.
Headset required:
Top Bearing: 45/45, 41.8 OD, 30.5 ID
Lower Bearing: 36/45, 51.8 OD, 40 ID
GW Switch Lever rear axle.
Max chainring size 32T.
Sizes: L2, L3
Colours: Raw Ti
Weight: 2.1kg (L3 frame)
Frame is supplied with dropouts and rear axle
Warranty: 5 years.

Geometry

GEOMETRY LEADING DESIGN

Geometry is the number one factor in the handling of a mountain bike frame. The Trailstar Ti has been designed with forward thinking geometry for the ultimate ride:

SIZE BY REACH

The Trailstar Ti features a length based sizing system. Depending on how you like your fit, you can size up or down to according to reach. Thanks to the shorter seat tubes and long dropper posts, each size accommodates a wide range of riders.
