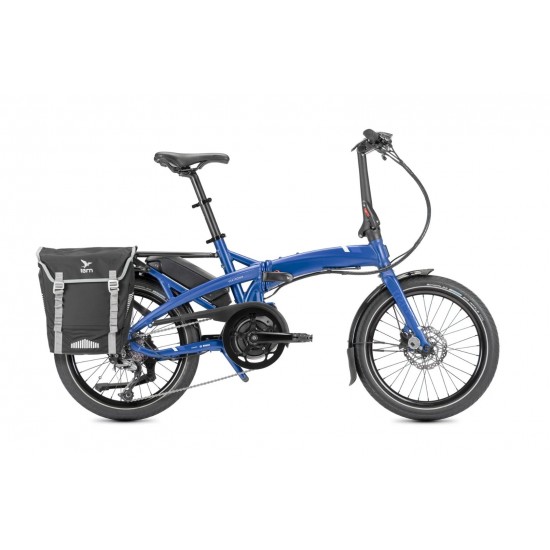

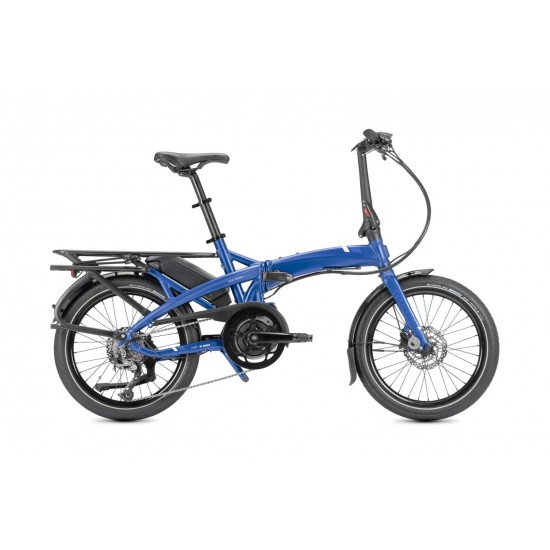

Tern Vektron Q9 Electric Folding Bike

• New colors and updated styling
• Upgraded to the Bosch Active Line Plus electric drivetrain for 270% more assistance and 50 Nm of torque
• Hydraulic disc brakes for all-weather stopping power
• Updated frame with a reclining battery for a lower center of gravity and better ride
• Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
• Integrated Atlas V Rack™ works seamlessly with Thule Yepp Maxi and Dash® RM child seats—no adapters needed
• Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family

SPECIFICATIONS

General Info

Speeds:

1 x 9

Weight:

21.9 kg (48.3 lb)

Gear Inches:

33" - 97" (2.65 - 7.72 m)

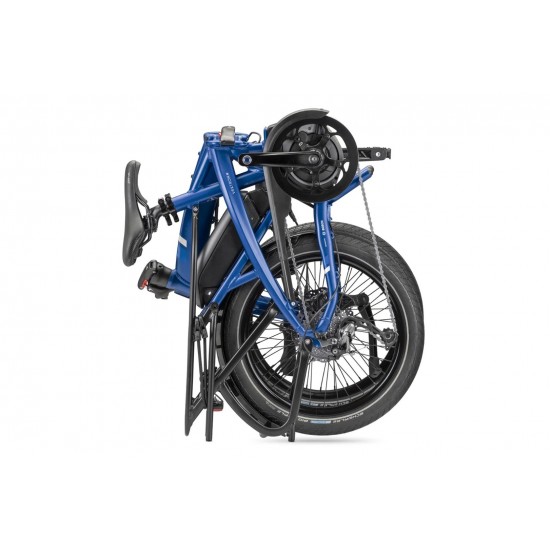

Folding Size:

42 × 86 × 68.5 cm (16.5 × 33.9 × 27 in)

Folding Time:

10 sec

Frame Sizes:

One size

Distance: Seatpost to Handlebar:

62 - 69 cm (24.4 - 27.2 in)

Distance: Saddle to Pedal:

67 - 110 cm (26.4 - 43.3 in)

Suggested Rider Height:

147 - 195 cm (57.9 - 76.8 in)

Max Gross Vehicle Weight:

125 kg (275.6 lb)

Max Rider Weight:

105 kg (231.5 lb)

Frame

Frame:

Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies

Fork:

Tern Tarsus, 6061-Al, hydroformed

Cockpit

Handlepost:

Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm

Stem:

Tern Andros, adjustable, forged construction, patented technology

Headset:

Tern Flux, cartridge bearings, Physis integrated

Handlebar:

Flat bar, 6061-AL, Tern Andros adapted

Grips/Bar Tape:

Velo ergonomic, lock-on

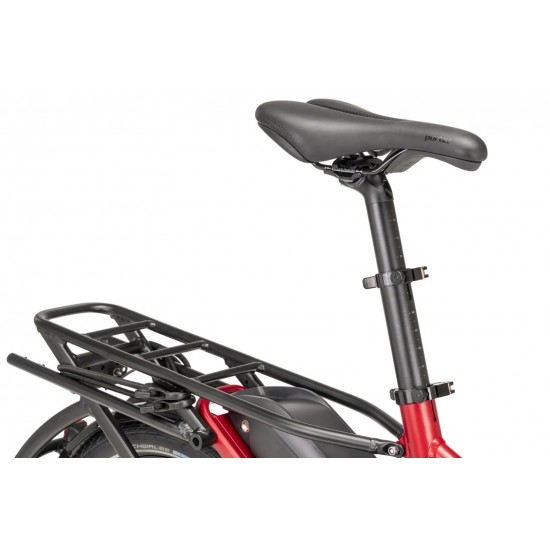

Saddle:

Tern Porter, patented GripPad design

Seatpost:

Tern Telescope, 34.9/30.9 mm, 2014-AL

Seatpost Clamp:

Tern Collar, 6061-AL, 2pc

Brakes

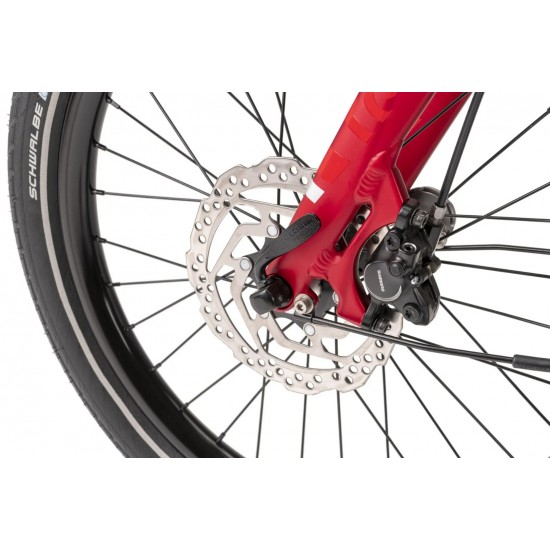

Front Brake:

Shimano, hydraulic disc

Rear Brake:

Shimano, hydraulic disc

Brake Levers:

Shimano, hydraulic disc

Brake Cable & Housing:

Shimano, hydraulic disc

Wheels

Front Hub:

Shimano disc

Rear Hub:

Shimano disc

Spokes & Nipples:

Stainless steel

Rims:

Kinetix Comp, for disc

Tyres:

Schwalbe Big Apple, 55-406, puncture protection, Reflex

Transmission

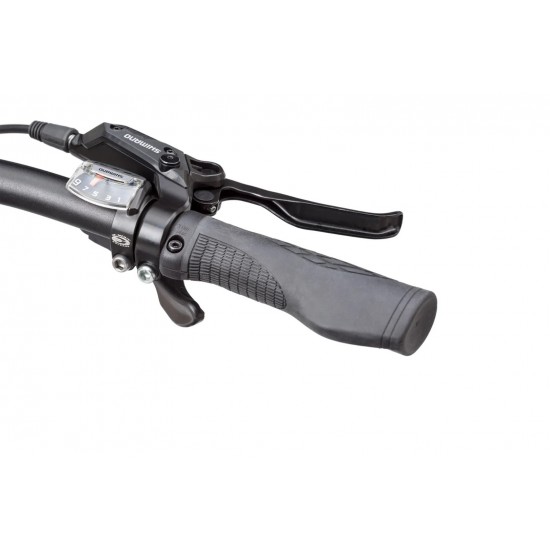

Shifter(s):

Shimano Alivio, 1 x 9 spd, trigger

Rear Derailleur:

Shimano Alivio Shadow

Crankset:

Vektron custom, forged 6061-AL crankarm

Cassette/Freewheel:

Shimano 11-32T, 9 spd

Bottom Bracket:

Motor integrated

Chain:

9 spd, DHT for eBike, GST corrosion resistant coating

Pedals:

MKS EZY

Shifter Cable & Housing:

Jagwire LEX-SL, slick treatment, alloy ferrules

E-System

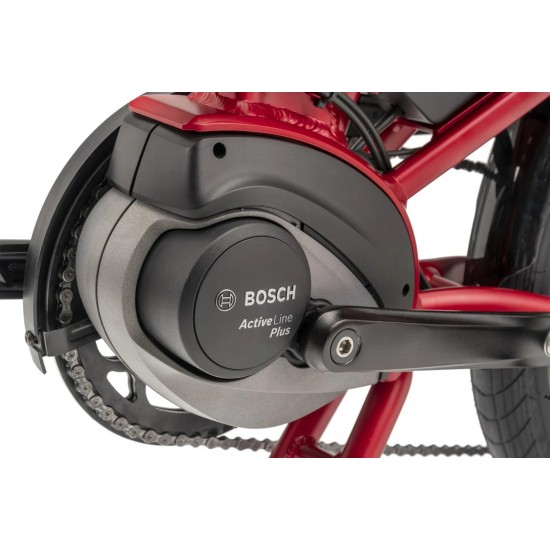

Motor:

Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

Battery:

Bosch PowerPack 400 Wh

Display:

Bosch Purion, 4 mode selectable, walk assist

Range:

400 Wh: 55 -110 km (35-70 mi)

Charger:

220V, 4A (EU); 100-240V, 4A (US)

Bells & Whistles

Bell:

Aluminum

Chainguard:

SKS Chainblade

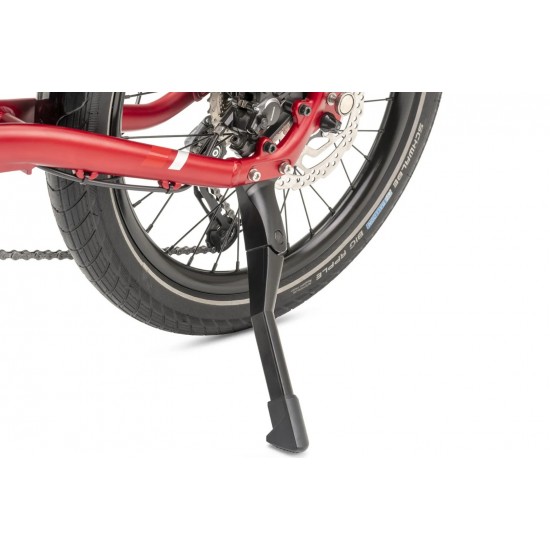

Kickstand:

URSUS, rear mount

Clip System:

Magnetix 3.0

Luggage Socket:

Yes

Front Light:

Tern Valo Direct, 190 lumens

Rear Light:

Herrmans H-Trace, for eBike

Fenders:

SplashGuard, stainless hardware

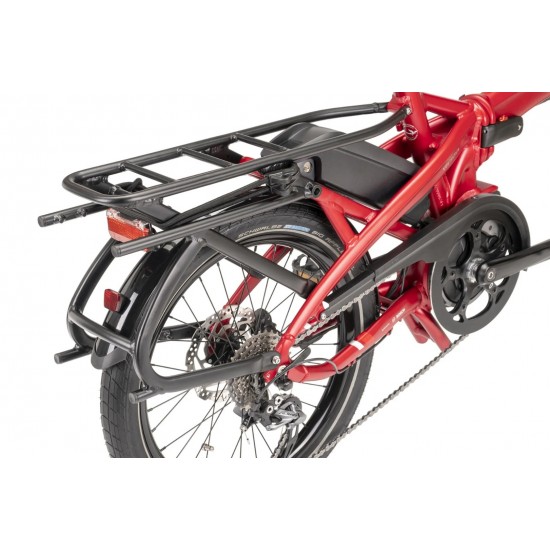

Rack(s):

Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
