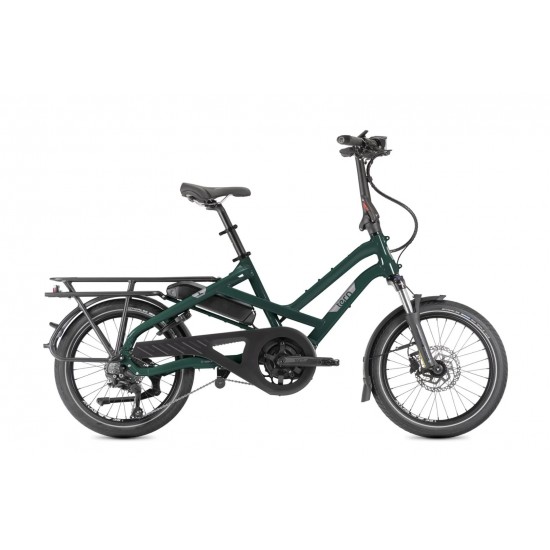

Tern HSD P10 Blue and Green Electric Bike

What makes it a P10?

• Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
• Detachable and easy-to-understand Intuvia 100 display
• 1x10-speed Shimano Deore groupset with trigger shifter

HSD Highlights

• Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
• Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
• Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
• Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
• Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight

SPECIFICATIONS

General Info

Speeds:

1 x 10

Weight:

27.6 kg (60.8 lb)

Gear Inches:

30 - 97" (2.36 - 7.72 m)

Folding Size:

165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)

Folding Time:

5 seconds

Frame Sizes:

One size

Distance: Seatpost to Handlebar:

54.5 - 62.5 cm (21.5 - 24.6 in)

Distance: Saddle to Pedal:

70 - 102.5 cm (27.6 - 40.4 in)

Suggested Rider Height:

150 - 195 cm (59.1 - 76.8 in)

Max Gross Vehicle Weight:

180 kg (396.8 lb)

Max Rider Weight:

120 kg (264.6 lb)

Frame

Frame:

Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg

Fork:

Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg

Cockpit

Handlepost:

Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm

Stem:

Tern Andros, adjustable, forged construction, patented technology

Headset:

Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated

Handlebar:

Tern Sweep, 6061-AL, Tern Andros adapted

Grips/Bar Tape:

Ergon

Saddle:

Tern Upright by Velo

Seatpost:

Tern Telescope, 34.9/30.9 mm, 2014-AL

Seatpost Clamp:

Tern Collar

Brakes

Front Brake:

Tektro, hydraulic disc, 180 mm rotor

Rear Brake:

Tektro, hydraulic disc, 160 mm rotor

Brake Levers:

Tektro, hydraulic disc

Brake Cable & Housing:

Tektro, hydraulic disc

Wheels

Front Wheel:

Tern Atlas H, cargo wheel

Rear Wheel:

Tern Atlas H, cargo wheel

Front Hub:

Novatec, Thru-axle, sealed bearings

Rear Hub:

Novatec, sealed cartridge bearing, disc

Spokes & Nipples:

Stainless steel

Rims:

Tern Atlas H, wide 35 mm

Tyres:

Schwalbe Big Apple, 55-406, puncture protection, Reflex

Transmission

Shifter(s):

Shimano Deore, 1 x 10 spd, trigger

Rear Derailleur:

Shimano Deore Shadow+

Crankset:

Tern HSD custom

Cassette/Freewheel:

Shimano 11-36T, 10 spd

Bottom Bracket:

Motor integrated

Chain:

KMC 10 spd, for eBike, EPT corrosion resistant coating

Pedals:

Urban with non-slip surface

Shifter Cable & Housing:

Jagwire LEX-SL, slick treatment, alloy ferrules

E-System

Motor:

Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

Battery:

Bosch PowerPack 545

Display:

Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock

Lock & Alarm:

Optional

Range:

545 Wh: 51-121 km (32-76 mi)

Charger:

220V, 4A (EU); 100-240V, 4A (US)

Bells & Whistles

Bell:

Pitch Plus, brass

Chainguard:

Tern Custom, full chain cover

Kickstand:

Ursus, rear mount

Luggage Socket:

Combo Mount

Front Light:

Tern Valo Direct, 190 lumens

Rear Light:

Herrmans H-Trace, for eBike

Fenders:

SKS, stainless hardware

Rack(s):

Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity

Frame Lock:

ABUS, keyed-alike with Bosch battery
