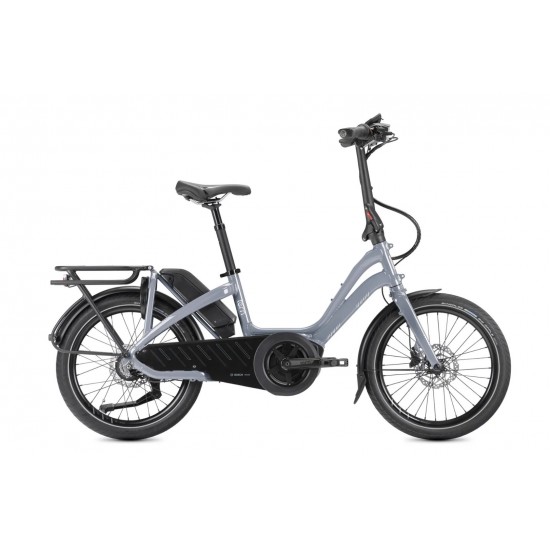

Tern NBD P8i Electric Bike

What Makes it a P8i?

• Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
• Bosch PowerPack 400 powers long trips, commutes, and journeys
• Shimano® Nexus  8-speed internal hub
• Shimano hydraulic disc brakes for reliable stopping power—even when carrying cargo and riding fast

NBD Highlights

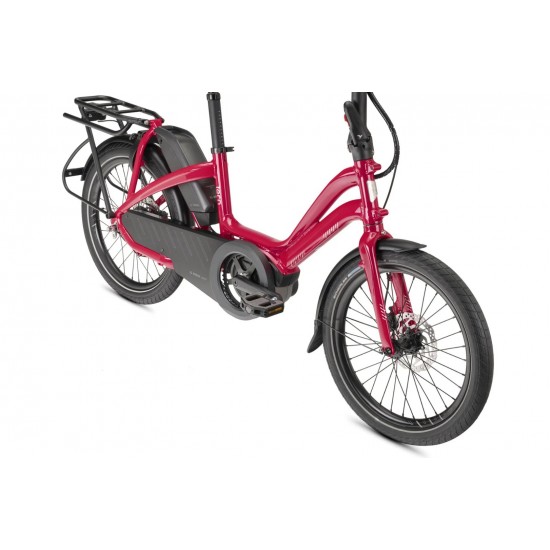

• Ultra-low 39 cm (15.4”) standover height means gentle, low steps are all that’s required to get on and go
• Ultra-low centre of gravity improves balancing and manoeuvring when riding with kids through parks and narrow streets
• Fits rider

  SPECIFICATIONS

  General Info

  Speeds:

  1 x 8

  Weight:

  23.7 kg (52.2 lb)

  Gear Inches:

  30" - 91" (2.37 - 7.26 m)

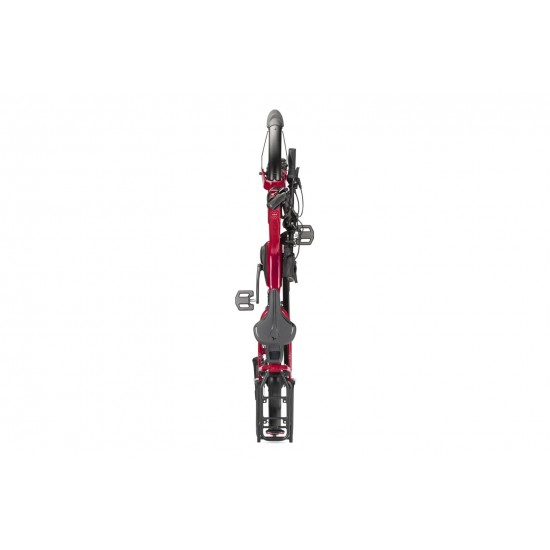

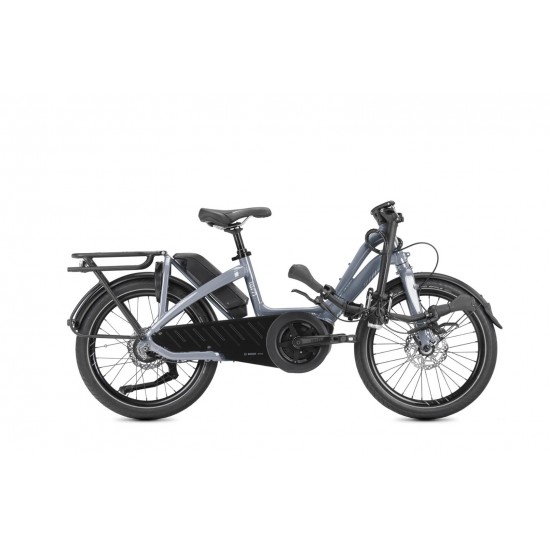

  Folding Size:

  38 × 156 × 79 cm (15 × 61.4 × 31.1 in)

  Folding Time:

  5 sec

  Frame Sizes:

  One size

  Distance: Seatpost to Handlebar:

  45 - 52 cm (17.7 - 20.5 in)

  Distance: Saddle to Pedal:

  70 - 100 cm (27.6 - 39.4 in)

  Suggested Rider Height:

  147 - 190 cm (57.9 - 74.8 in)

  Max Gross Vehicle Weight:

  140 kg (308.6 lb)

  Max Rider Weight:

  120 kg (264.6 lb)



  Frame

  Frame:

  Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 140 kg

  Fork:

  Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 140 kg



  Cockpit

  Handlepost:

  Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm

  Stem:

  Tern Andros, adjustable, forged construction, patented technology

  Headset:

  Tern Flux by FSA, cartridge bearings, Physis integrated

  Handlebar:

  Tern Sweep, 6061-AL, Tern Andros adapted

  Grips/Bar Tape:

  Ergon

  Saddle:

  Tern Upright by Velo

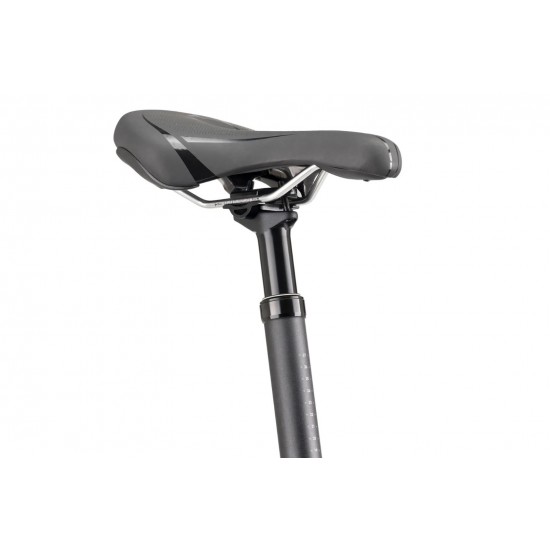

  Seatpost:

  Tern RideEasy Suspension, 34.9 mm

  Seatpost Clamp:

  Tern Collar



  Brakes

  Front Brake:

  Shimano, hydraulic disc

  Rear Brake:

  Shimano, hydraulic disc

  Brake Levers:

  Shimano, hydraulic disc

  Brake Cable & Housing:

  Shimano, hydraulic disc



  Wheels

  Front Hub:

  Shimano disc

  Rear Hub:

  Shimano Nexus 8

  Spokes & Nipples:

  Stainless steel

  Rims:

  Kinetix Comp, for disc

  Tyres:

  Schwalbe Big Apple, 55-406, puncture protection, Reflex



  Transmission

  Shifter(s):

  Shimano 8 spd.

  Crankset:

  Tern NBD custom, forged 6061-AL crankarm

  Cassette/Freewheel:

  16T

  Chain:

  KMC for eBike, EPT corrosion resistant coating

  Pedals:

  MKS Platform, Tern custom design

  Shifter Cable & Housing:

  Shimano



  E-System

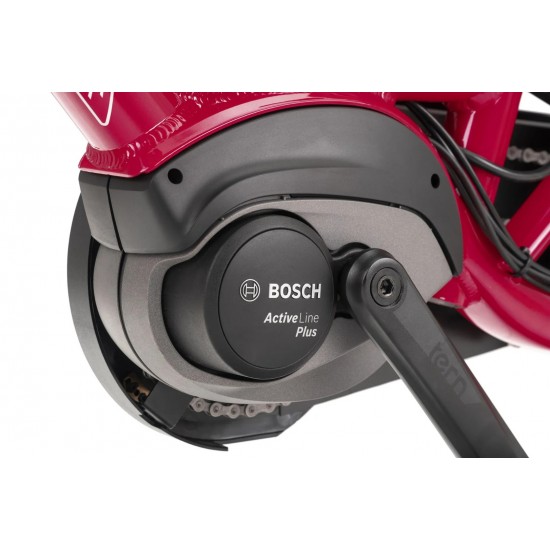

  Motor:

  Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

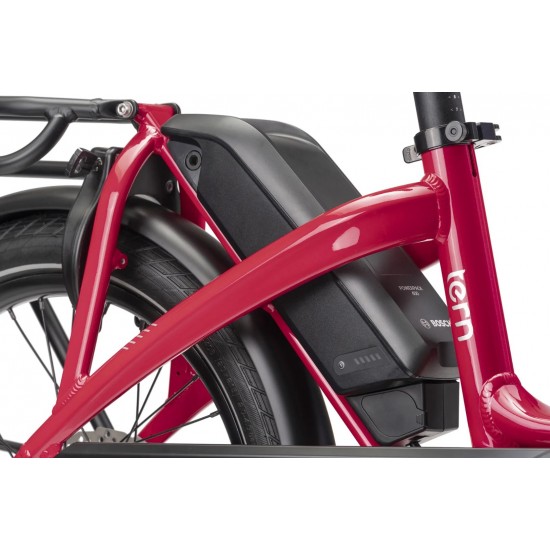

  Battery:

  Bosch PowerPack 400

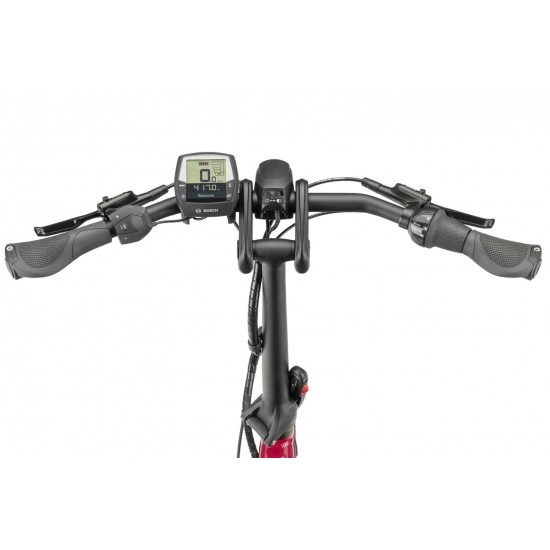

  Display:

  Bosch Intuvia, 4 mode selectable, walk assist

  Range:

  54 -108 km (34-67 mi)

  Charger:

  Bosch Standard Charger



  Bells & Whistles

  Bell:

  Aluminum

  Chainguard:

  Tern Custom, full chain cover

  Kickstand:

  Ursus, rear mount

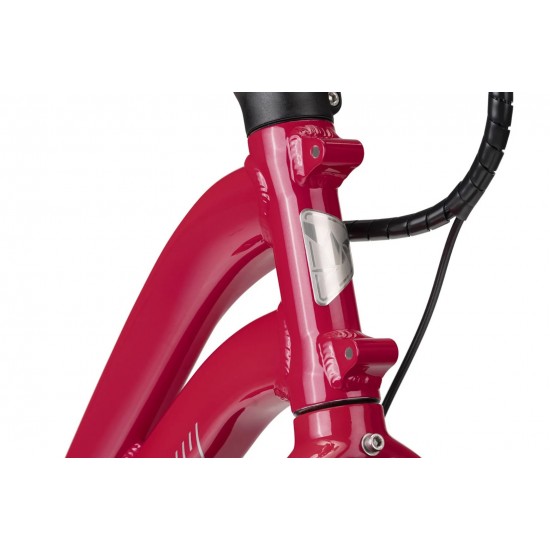

  Luggage Socket:

  Combo Mount

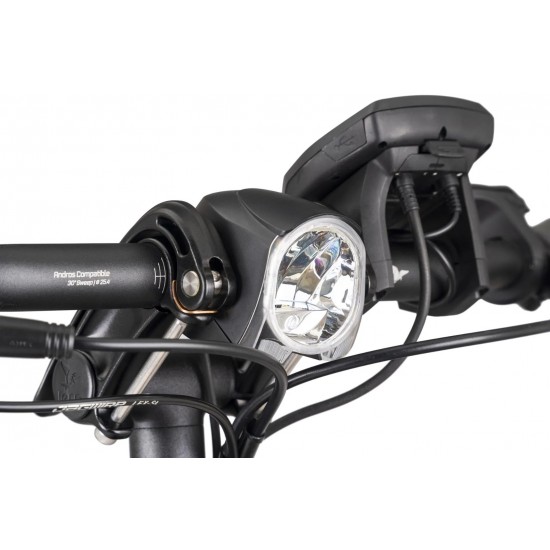

  Front Light:

  Tern Valo Direct, 190 lumens

  Rear Light:

  Herrmans

  Fenders:

  SplashGuard, stainless hardware

  Rack(s):

  Gaia Rack, 27 kg capacity, Vertical Parking

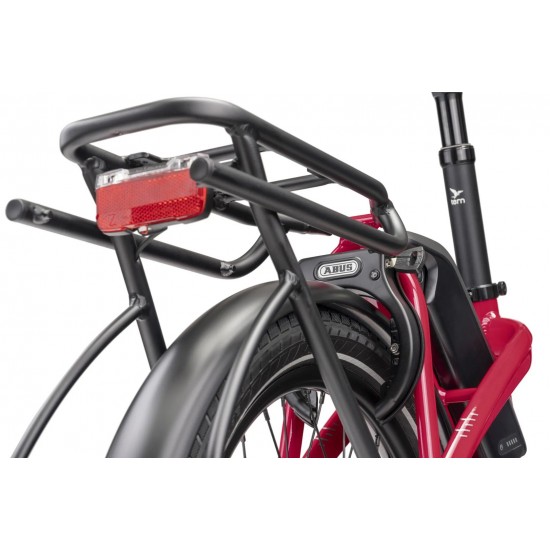

  Frame Lock:

  ABUS, keyed-alike with Bosch battery

  s 147 - 190 cm (4'10" - 6'3")

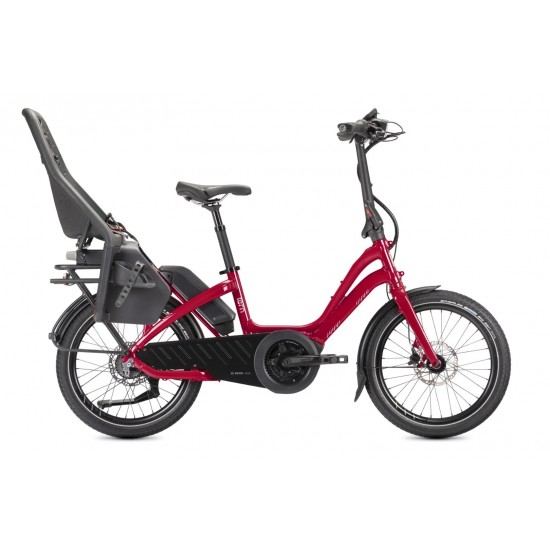

• Gaia Rack is certified to carry up to 27 kg (60 lbs) and works with many child seats
• Proven safe and reliable: frame and fork have undergone the EFBE Tri-Test to the 140 kg (309 lbs) Maximum Gross Vehicle Weight
