Tern GSD G2 S10 LX Electric Bike

• 200 kg (440 lb) Maximum Gross Vehicle Weight
• Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support
• Bosch dual-battery system (500/1000 Wh) for a range of up to 206 km (128 mi)
• Shimano® Deore 1 × 10-speed hub for smooth, efficient shifting
• Adjustable cockpit comfortably fits riders 150 – 195 cm (4’11” – 6’5”)

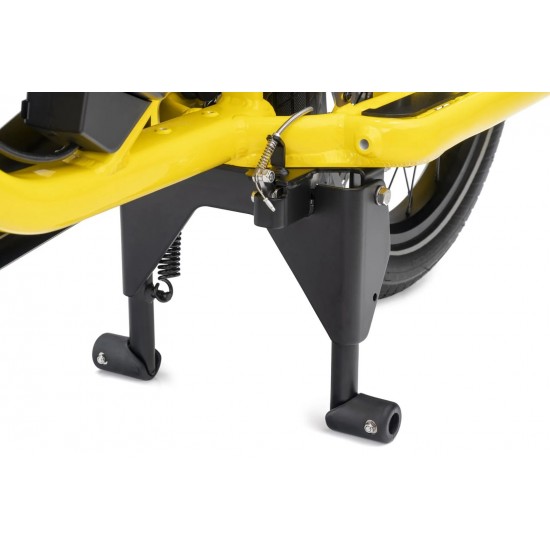

• Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock
• Heavy-duty frame-integrated rear rack and integrated lower decks

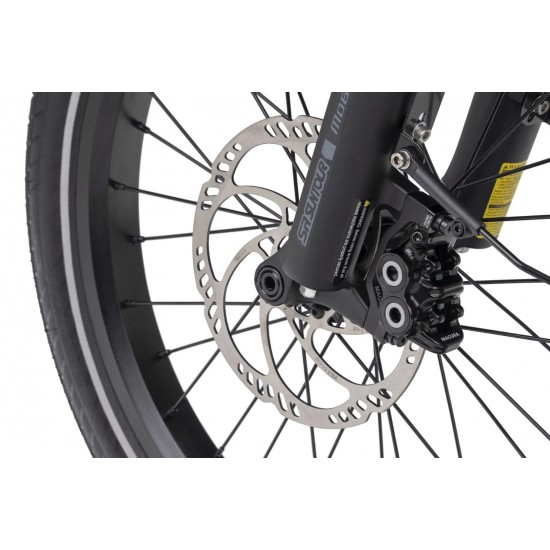

• Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
• Always-on RearStop™ Brake Light helps you safely signal stops
• Integrated Abus® Wheel Lock, keyed-alike with the battery
• Atlas Wheels with custom CNC machined hubs for extra strength and durability
• Cane Creek® Thudbuster ST Suspension Seatpost for an extra-cushy ride

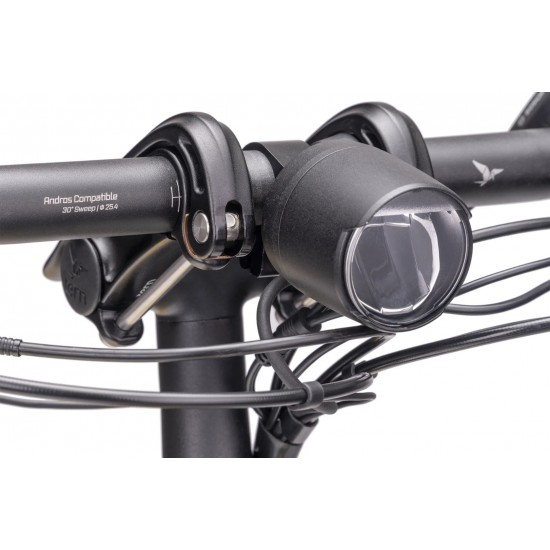

• Ultra-bright Ignis™ Headlight ensures 24/7 visibility, no matter the weather
• Wide range of cargo- and passenger-carrying accessories
• Fits two Thule® Yepp Maxi seats, no adapters needed

SPECIFICATIONS

General Info

Speeds:

1 x 10

Weight:

33.58 kg (74 lb)

Gear Inches:

26" - 99" (2.08 - 7.91 m)

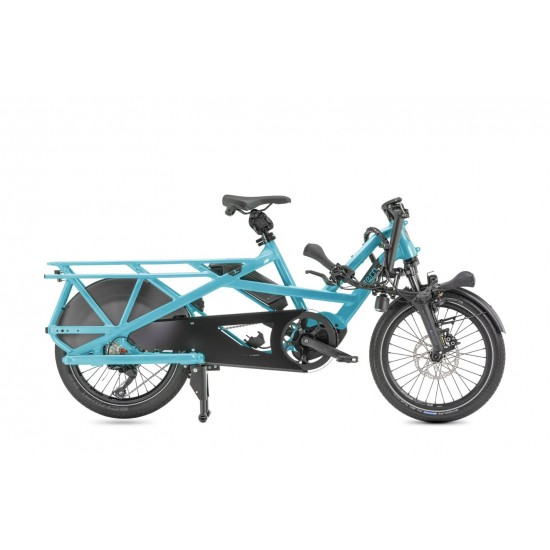

Folding Size:

176 × 40.5 × 87 cm (69.3 × 15.9 × 34.3 in)

Folding Time:

5 sec

Frame Sizes:

One size

Distance: Seatpost to Handlebar:

49 - 59 cm (19.3 - 23.2 in)

Distance: Saddle to Pedal:

69 - 105 cm (27.2 - 41.3 in)

Suggested Rider Height:

150 - 195 cm (59.1 - 76.8 in)

Max Gross Vehicle Weight:

200 kg (440.9 lb)

Max Rider Weight:

120 kg (264.6 lb)

Frame

Frame:

Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg

Fork:

Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg

Cockpit

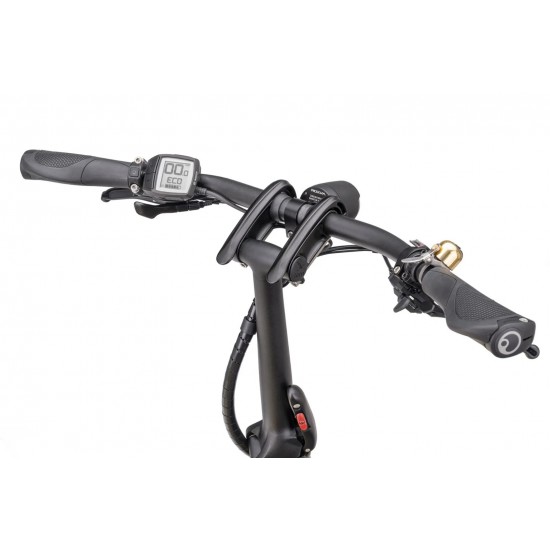

Handlepost:

Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm

Stem:

Tern Andros, adjustable, forged construction, patented technology

Headset:

Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated

Handlebar:

Tern Sweep, 6061-AL, Tern Andros adapted

Grips/Bar Tape:

Ergon

Saddle:

Tern GSD by Velo, with rear handle

Seatpost:

Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm

Seatpost Clamp:

Tern Collar, 6061-AL, 2pc

Brakes

Front Brake:

Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads

Rear Brake:

Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads

Brake Levers:

Magura MT5 e-stop, hydraulic, with brake sensor

Brake Cable & Housing:

Magura, hydraulic

Wheels

Front Wheel:

Tern Atlas, heavy duty cargo wheel

Rear Wheel:

Tern Atlas, heavy duty cargo wheel

Front Hub:

Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing

Rear Hub:

Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design

Spokes & Nipples:

Stainless steel, 13G

Rims:

Tern Atlas, ultra wide 36 mm, dual reinforced joint

Tyres:

F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex

Transmission

Shifter(s):

Shimano Deore, 1 x 10 spd

Rear Derailleur:

Shimano Deore Shadow+

Crankset:

Tern GSD custom, forged 6061-AL DH crankarm

Cassette/Freewheel:

Shimano 11-42T, 10 spd

Bottom Bracket:

Motor integrated

Chain:

10 spd, DHT for eBike, GST corrosion resistant coating

Pedals:

Urban with non-slip surface, sealed bearings

Shifter Cable & Housing:

Jagwire LEX-SL, slick treatment, alloy ferrules

E-System

Motor:

Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

Battery:

Bosch Dual Battery system, 500 Wh/1000 Wh

Display:

Bosch Purion

Range:

500 Wh: 52-105 km (32-65 mi); 1000 Wh: 102-206 km (63-128 mi)

Charger:

220V, 4A (EU); 100-240V, 4A (US)

Bells & Whistles

Bell:

Pitch Plus, brass

Chainguard:

Tern Custom, full chain cover

Kickstand:

Atlas Lockstand, w/ remote unlock, patented technology

Luggage Socket:

Combo Mount

Front Light:

Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam

Rear Light:

RearStop Brake Light, Always on brake light

Fenders:

Integrated Wheel Guard, AL6061, w/ Side Skirt

Rack(s):

Frame integrated, heavy duty design; Max load weight: 100 kg (220 lb)

Accessory:

ABUS, keyed-alike with Bosch battery
