£37.00
Ex Tax: £37.00

Available Options

Product Description

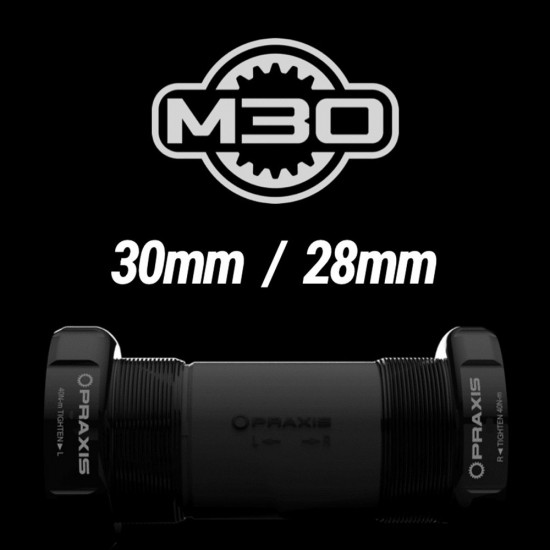

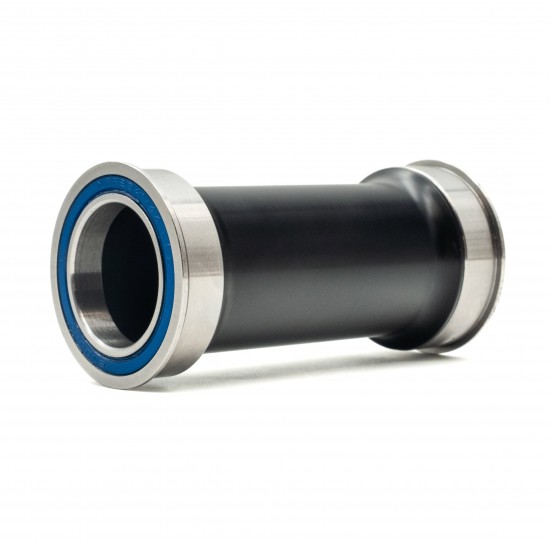

This is the Praxis M30 Press Fit Bottom Bracket (steel) for installing a Praxis M30 crank into a BB30, PF30, BB86/90/92, 386EVO, BBRight or Specialized OSBB frame.

Features

TECHNOLOGY

For M30 spindle based cranks only.
Forged & machined heat-treated 7075 T6 Aluminium.

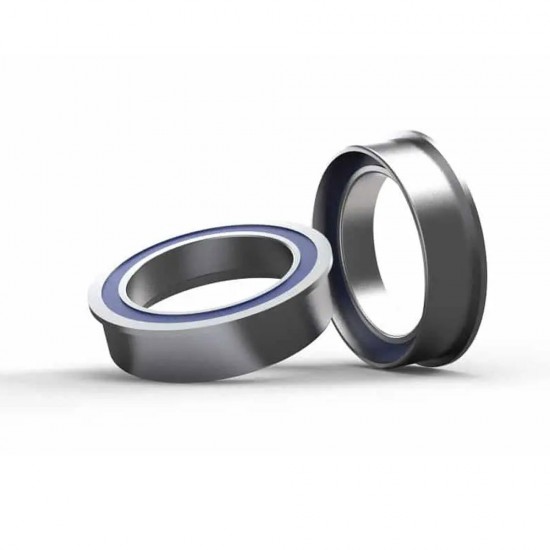

30mm Drive bearing / 28mm Non-Drive bearing.

VIP NOTES

68mm Road version / 73mm MTB version.
68mm cannot be used with MTB Cranks.
Use M30 BB tool for installation - sold separately.

WARRANTY

Praxis Works warrants components to be free from defects in materials or workmanship for a period of 2 years after original purchase. However, there are limitations as nothing lasts forever so please read the Praxis warranty page, link below.Warranty Page

Specification

Warranty Page For M30 spindle based cranks only.
Forged & machined heat-treated 7075 T6 Aluminium.
Steel cartridge bearings. "Ceramic" version contains ABEC 5 bearings.
30mm Drive bearing / 28mm Non-Drive bearing.

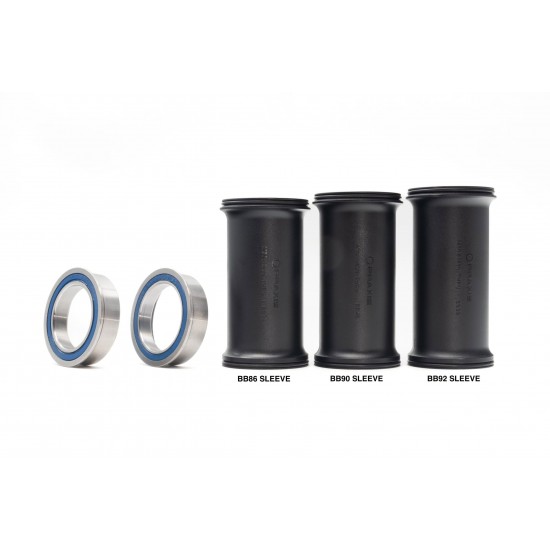

For BB86/92, BB30, PF30, BBRight, BB386EVO and Specialized Road OSBB Aluminium frames.

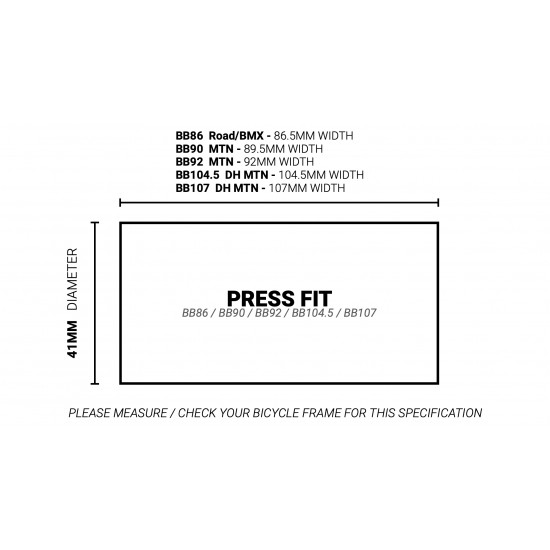

BB86/92 frames need to be check with the frame gauge before fitting.
For Specialized OSBB please purchase the BB30/PF30 BB and the OSBB sleeve.

INSTRUCTIONS HERE

BB86/BB92 Frame Gauge Info
