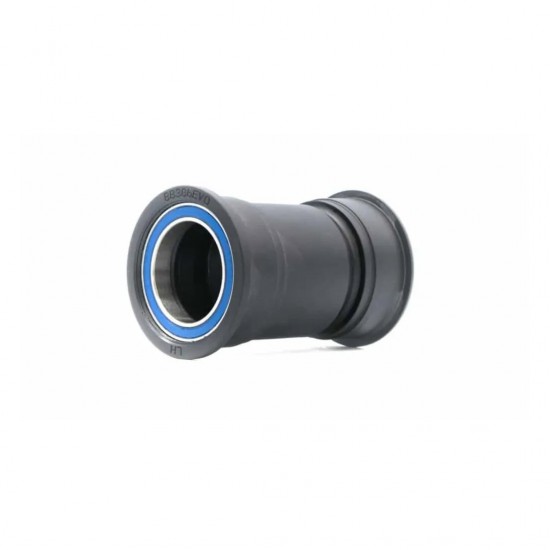

Praxis - BB M30 THRU - 386 EVO

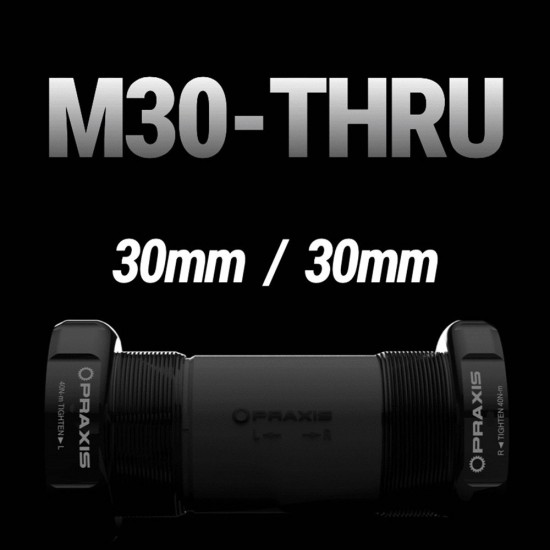

M30 Thru BB

The Praxis M30 Thru BB is designed to be a proper bottom bracket (BB) for installing the Praxis Lyft Carbon Crank, RaceFace "Cinch", Rotor REX MTB Crank or CaneCreek eeWings. The Praxis patent pending design keeps the Enduro 6806 cartridge bearings outboard of the frame for greater rigidity and free of frame/c-clip tolerance issues that other systems deal with.

For Press Fit Options...

Simply press in the longer non-drive-cup, then thread the shorter Drive cup into it. As the drive cup threads in, the trademark Collet system expands to a precise limit evenly dispersing pressure for a super tight fit. With both cups connected and the collet set exactly to spec, there is no chance the bearings can come out of alignment or wiggle/walk out of the frame. This design also uses a compressible o-ring on the non-drive side cup to compensate for frame shell width discrepancies.

Features

TECHNOLOGY

For Praxis Lyft Carbon, RaceFace "Cinch", Rotor REX MTB Crank or CaneCreek eeWings.
Forged & machined heat-treated 7075 T6 Aluminium.
30mm Drive & Non-Drive bearing.

VIP NOTES

68mm Road version / 73mm MTB version.
68mm cannot be used with MTB Cranks.
Use M30 BB tool for installation - sold separately. The BB92 Guide is required for BB92.

WARRANTY

Praxis Works warrants components to be free from defects in materials or workmanship for a period of 2 years after original purchase. However, there are limitations as nothing lasts forever so please read our

Warranty Page

Specification

English Threaded/BSA Options

For Praxis Lyft Carbon, RaceFace "Cinch", Rotor REX MTB Crank or CaneCreek eeWings.
For installing into English Threaded/BSA frames.
30mm Drive & Non-Drive bearing.
6806 Steel bearings.
Forged & machined heat-treated 7075 T6 Aluminium.
The Praxis M30 BB tools are needed for installation - Sold Separately.
MTB Guides - ISCG05 & ST Mounted Good, ISCG03 Not Good.

INSTRUCTIONS HERE

Press Fit Options

For Praxis Lyft Carbon, RaceFace "Cinch", Rotor REX MTB Crank or CaneCreek eeWings.
30mm Drive & Non-Drive bearing.
6806 Steel bearings.
Forged & machined heat-treated 7075 T6 Aluminium.
MTB Guides - ISCG05 & ST Mounted Good, ISCG03 Not Good.
The Praxis M30 BB tools are needed for installation. The BB92 guide is required for BB92.
For install in BB30, PF30, BB86, BB90 or BB92 frames.
Unique all in one design in which the bearing outer race is also the outer press fit surface (BB86/90/92 Only).
BB86 for ROAD | BB90 or BB92 for MTN.
Road spindle: 103mm or longer for BB86 road frame shells.
MTB spindle: 108mm or longer for BB90/92 MTB frame shells.
BB86/92 frames need to be check with the frame gauge before fitting.

INSTRUCTIONS HERE

BB86/BB92 Frame Gauge Info
