Praxis - CS - Alba DM X - 52/36 - 175

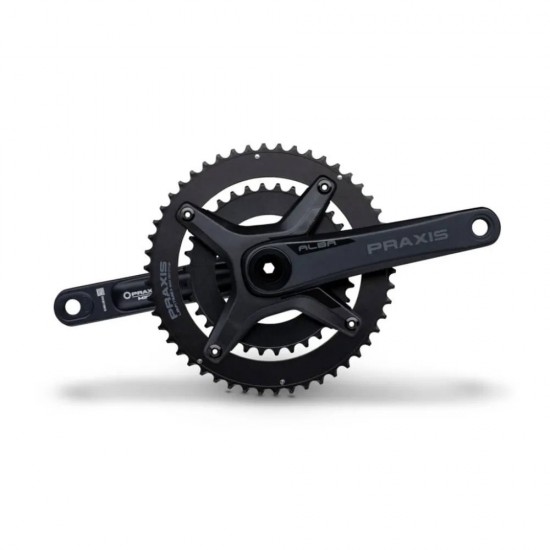

Deep in the hills of Santa Cruz, cyclists are met by a nasty, four mile, 1800 ft. climb named Alba Road. This respected ascent was the inspiration for our Alba road crank. With its shapely forged-alloy arms, M30 alloy spindle, new LevaTime II X-Spider and rings the Alba is ready for anything.
The Alba M30 road bike crank can be installed in a BSA, BB86, 386EVO, BB30, PF30, T47, BBRight or older Specialized OSBB road frame. Praxis M30 BB required and sold separately.

Features

TECHNOLOGY

Forged alloy arms.
M30 Spindle/Bottom Bracket System.

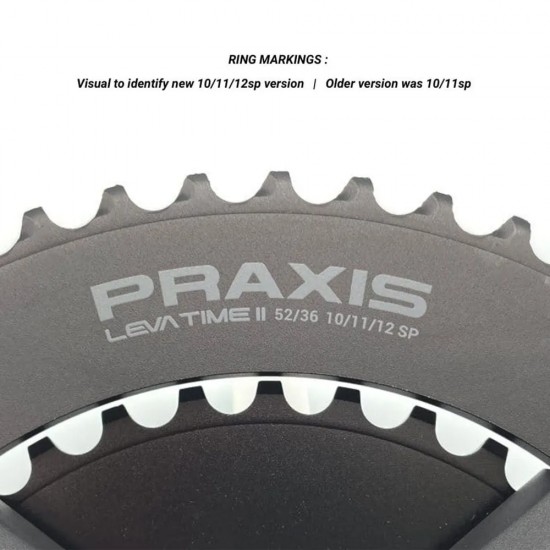

2x Cold Forged rings Learn More Here
2x LevaTime shifting tech Learn More Here
1x Wave tooth profile rings Learn More Here

COMPATIBILITY NOTES

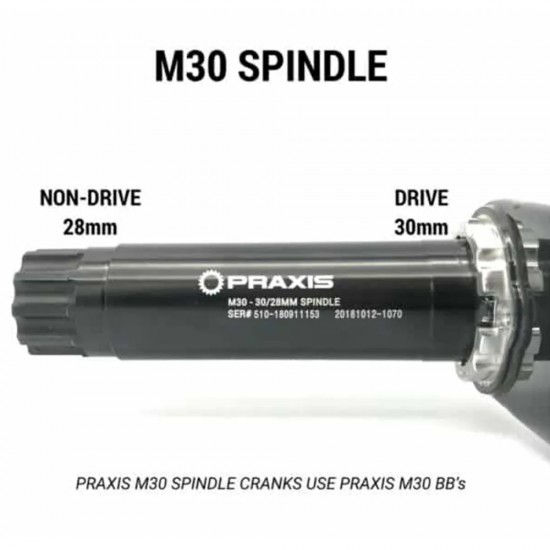

The Alba M30 road crank uses our Praxis M30 28/30mm stepped spindle/BB. M30 bottom bracket versions offered : BSA, BB86/90/92, BB30, PF30, 386EVO, T47, and BBRight.

Shimano - Praxis rings shift great with both Di2 and mechanical Shimano 10/11/12sp drivetrains. Highly suggest Shimano, KMC, or Campy chain.

SRAM - Praxis rings shift great with the e-Tap and mechanical SRAM 10/11sp drivetrains. Highly suggest Shimano, KMC, or Campy chain.

Campy - Praxis rings shift great with the EPS and mechanical Campy 10/11/12sp drivetrains. Highly suggest Shimano, KMC, or Campy chain.

COMPATIBILITY NOTES

Praxis Works warrants components to be free from defects in materials or workmanship for a period of 2 years after original purchase. However, there are limitations as nothing lasts forever so please read our Warranty page for details.

Specification

Alloy Arms | New LT2 Spider.
New LT2 X-Rings.
Steel CR bolts.
160mm lengths.
48/32t.
M30 28/30mm stepped spindle | Requires Praxis M30 BB.
Works with 10/11/12sp chains.
Weight: 800g+/- (172.5mm with 50/34t).
Q-Factor: 147mm.

INSTRUCTIONS HERE
