Praxis - CS MTB - Cadet G2 - Arms Only - 170mm

Perfect for trail riding and cross country, the Cadet ushers in a new level of performance aimed at value-driven riders. With stiff and light solid forged-aluminium arms, a stout M30 alloy spindle and a direct mount ring interface, the new Cadet M30 is winning the hearts and minds of riders everywhere.

Features

COMPATIBILITY NOTES

Bottom Bracket

The Cadet M30 requires the use of a Praxis M30 Bottom Bracket as it has a 30mm drive bearing, and a 28mm non-drive bearing unique to Praxis. Please choose from the M30 options above for your specific frame spec.

---

CADET & CADET HD

Updated arm shaping and spacing, the new Gen2 Cadet is perfect for all types of trail riding. This new generation Cadet packs in a level of performance aimed at value-driven riders that dont want to mess around. With stiff and solid forged-aluminum arms, a stout M30 alloy spindle and a direct mount ring interface, the new Cadet M30 checks all the boxes. The CADET HD version is for those who need something Heavy Duty as we reinforced the arms to take more abuse.

Specification

Sold as crank arms only | M30 BB & DM Ring sold separately
CADET 165 / 170 / 175 | Q-Factor 177mm
CADET HD 165 / 170 | Q-Factor 177mm
HD Heavy Duty version with reinforced arm forging See pic above

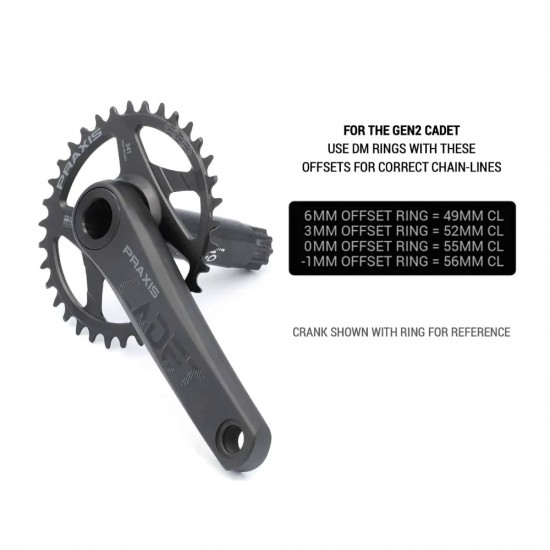

Updated 3-bolt DM ring interface to align spacing with established chain-line offsets. Riders can use any brand 3-Bolt DM ring. See Pic
8mm alloy main crank bolt for Install/Self-Extract | 50Nm Torque

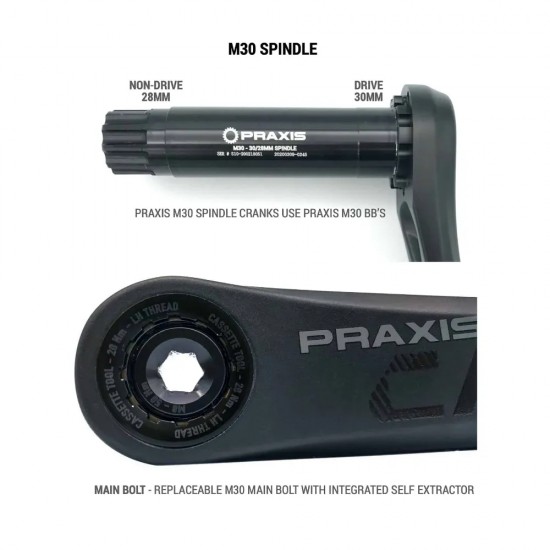

M30 Spindle | Requires Praxis M30 BB
Ref Weight: 558g +/- (Cadet 170mm set no ring) | 640g +/- (Cadet HD 165mm set no ring)
Required M30 BB CHECK HERE
DM Wave Tech Rings READ HERE
Crank Installation CHECK HERE
