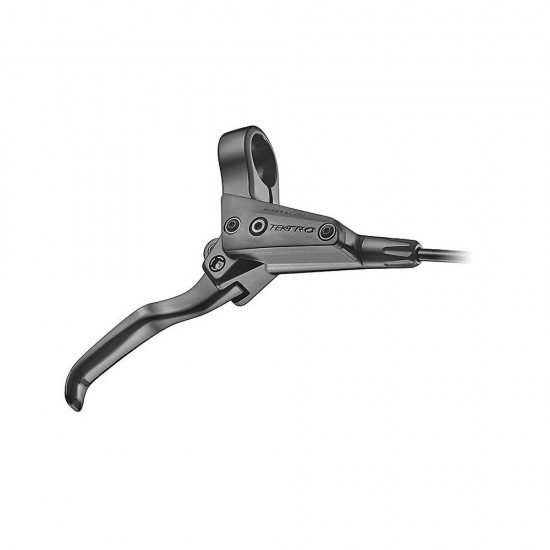

Tektro - M280 Disc Brake - LH

The Tektro HD-M280 Hydraulic Disc Brake is the perfect entry-level disc brake with premium performance. Experience reliable stopping power, no-nonsense OE-style braking system, without breaking the bank.
The HD-M280 features the EZ Plug-In system, meaning the brake is pre-bled and pressure tested with a plugged brake lever and hose, resulting in there being no need to bleed the HD-M280 upon fitting. You can simply route the hose through your frame, cut it to length and attach the lever using the supplied olives and connectors.
Full installation instructions can be found below:
Installation Video Installation PDF Download

Features

• One-Piece Lever clamp.
• 2-Finger lever blade.
• Forged aluminium 2-Piston calliper.
• EZ Plug-In system for simple installation.
• Adjustable reach lever.
• Post Mount fitment calliper.
• Low noise resin brake pads.

Specification

Lever: One-Piece cast aluminium clamp, 2-Finger aluminium blade.
Calliper: Forged aluminium, 2-Piston.
Hose: 5mm diameter, 1900mm length.
Brake Pads: E10.11 low noise resin.
Brake Fluid: Mineral Oil.
Recommended Rotor Thickness: 1.8mm.
System Weight: 300g (excl. Rotor, Adapter and Hardware).
Please Note Brake system comes complete with the following:
3x Olives.
2x Barbs.
2x Calliper Mounting Bolts.
1x Compression Nut & Cover.
